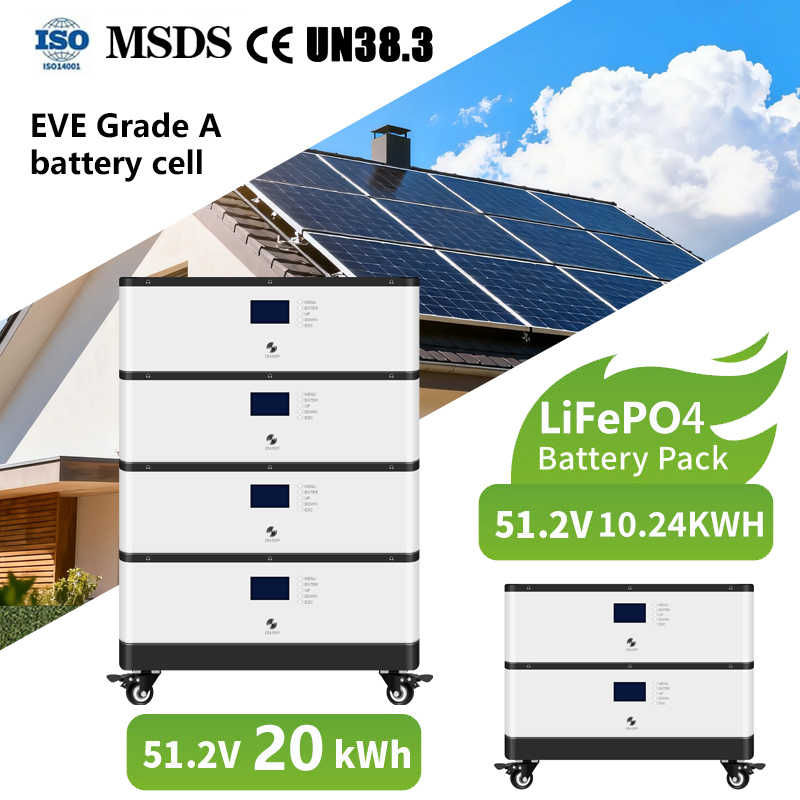

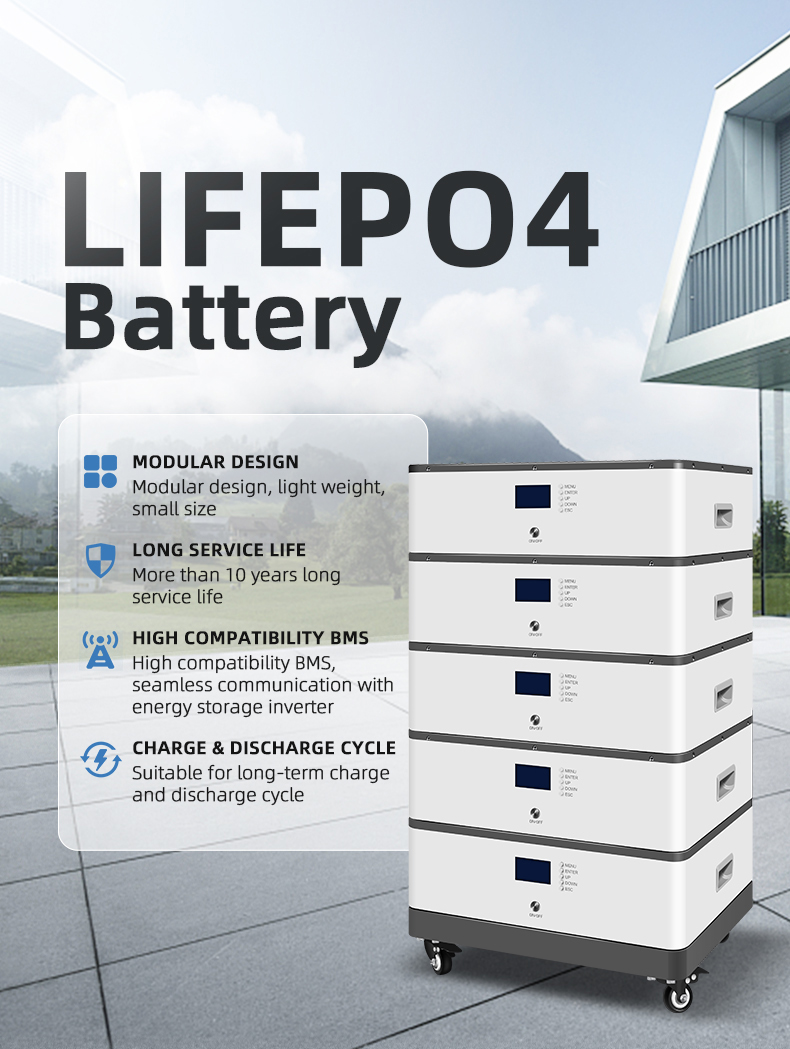

51.2V 100AH Stackable Energy Storage Inverter Battery for Home 5kwh EVE Grade a Battery Cell 48V Lifepo4 Solar System Battery
- POWER BATTERY
- China
- Three months
- Mass supply
Core Selling Points (Bullet Points)
Tier-1 Grade A Cells: Powered by authentic EVE Grade A LiFe……
Core Selling Points (Bullet Points)
-
- Tier-1 Grade A Cells: Powered by authentic EVE Grade A LiFePO4 cells, ensuring exceptional consistency, safety, and a long cycle life.

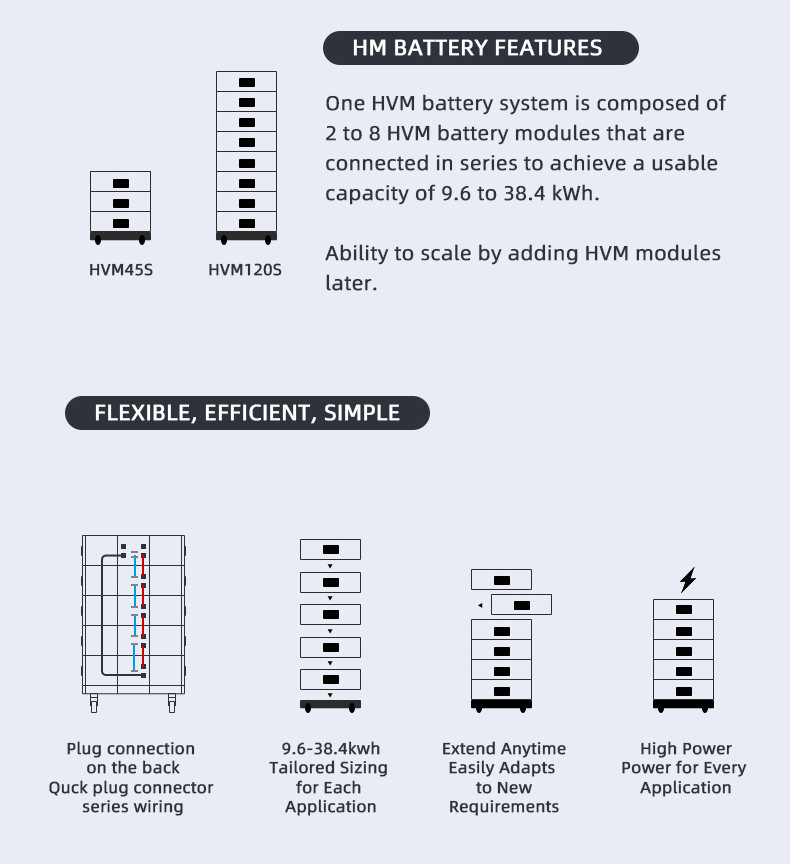

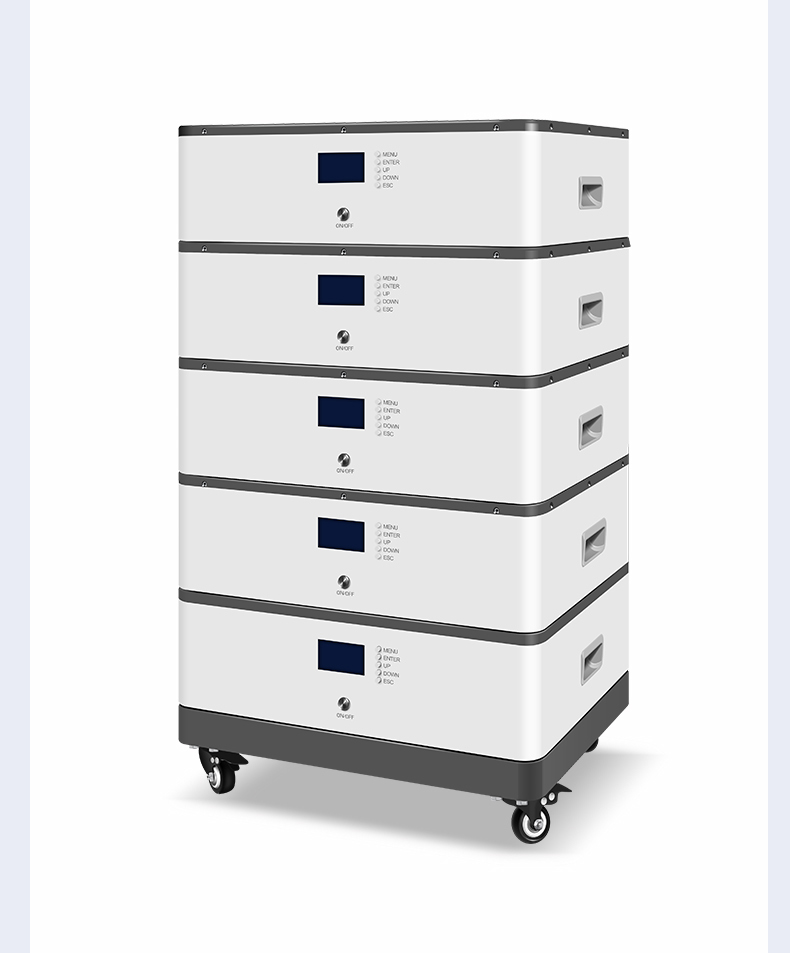

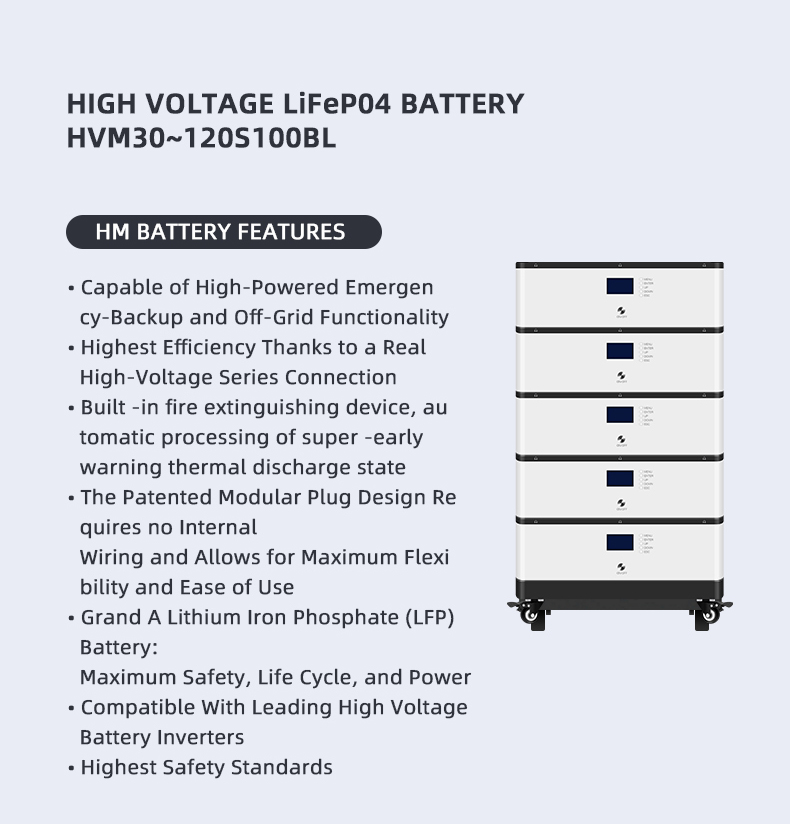

- Modular Stackable Design: Easy-to-install vertical stacking allows for seamless capacity expansion from 5.12kWh up to 30kWh+ without complex wiring.

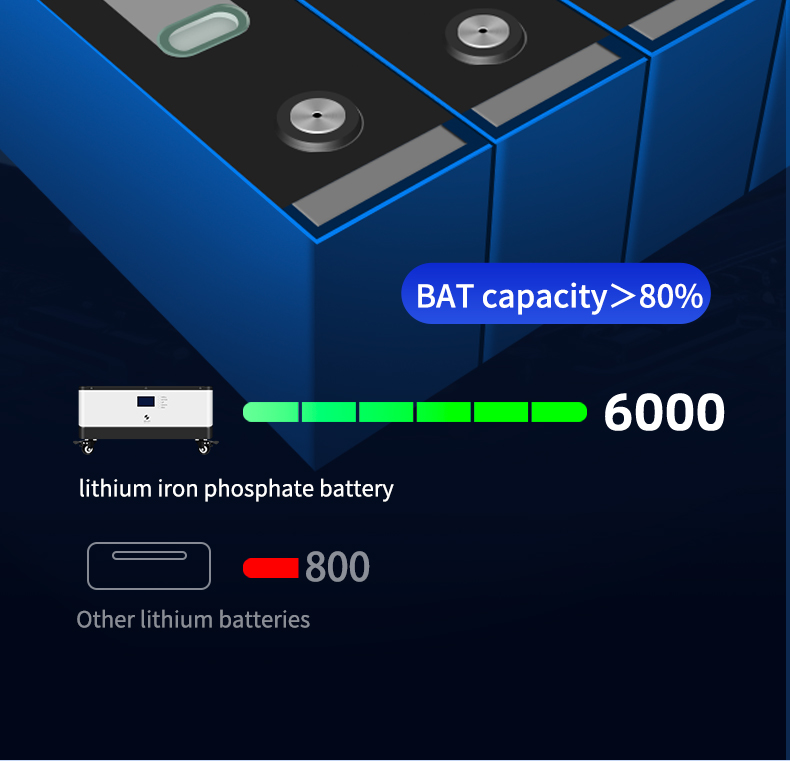

- Extreme Longevity: Engineered for 6,000+ deep cycles (@80% DOD), providing over 15 years of reliable daily service.
- Smart BMS Integration: Built-in intelligent Battery Management System (BMS) with RS485/CAN/RS232 communication for full compatibility with mainstream hybrid and off-grid inverters.
- High-Efficiency Performance: Optimized for 48V/51.2V solar systems with a recommended discharge depth of up to 90% and low self-discharge rates.
Detailed Product Description

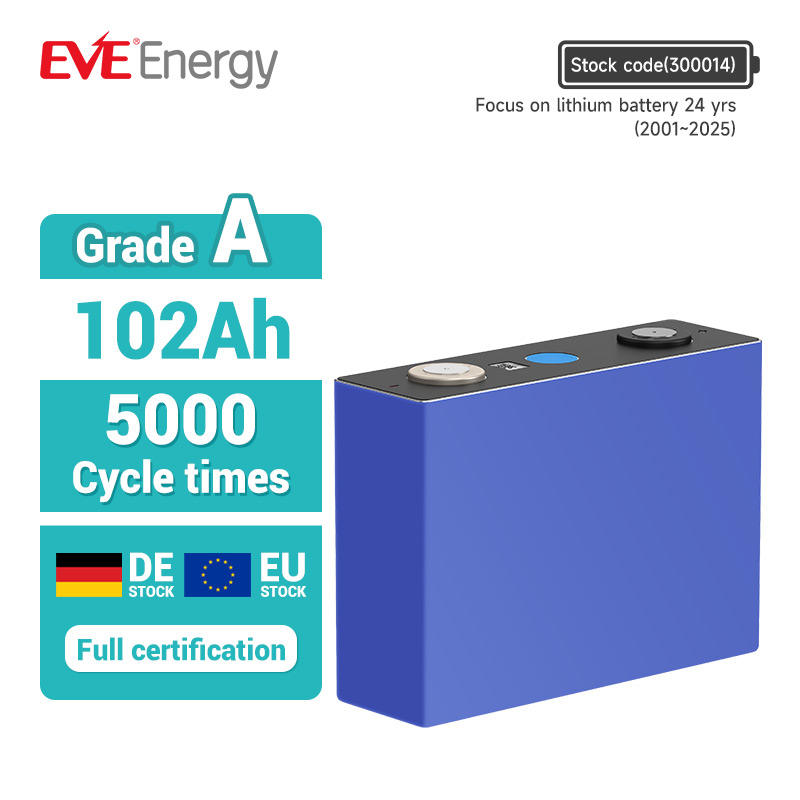

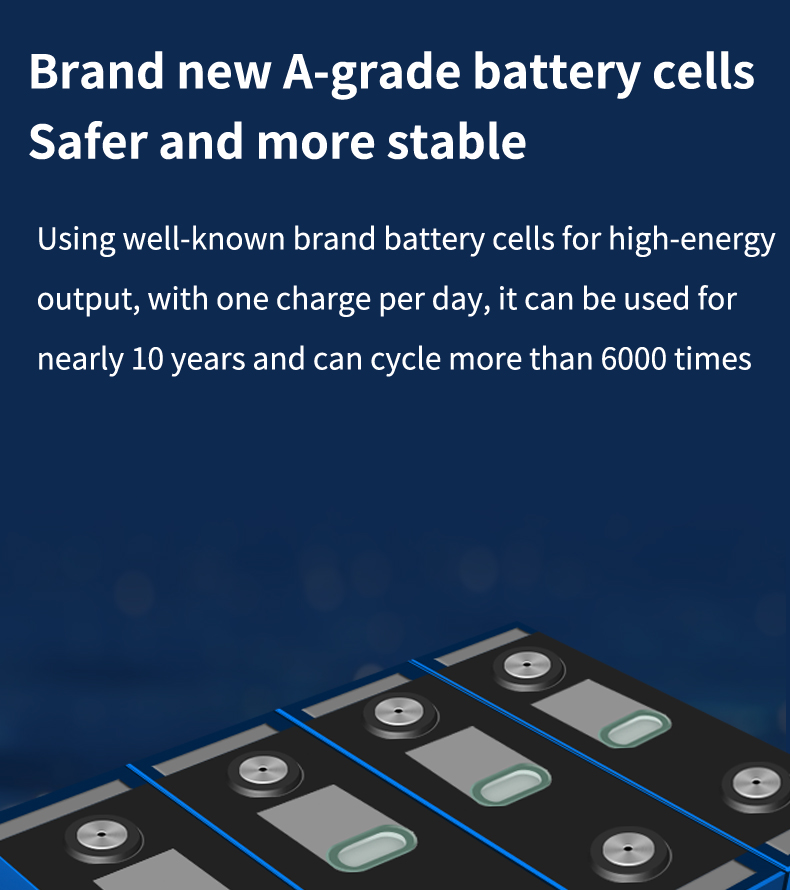

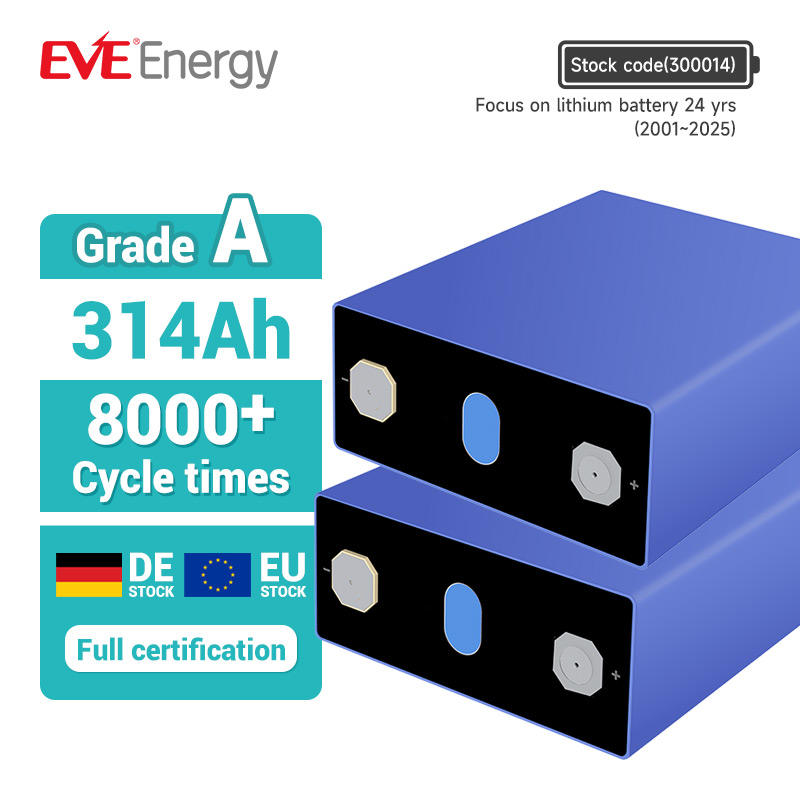

Unmatched Reliability with EVE Grade A Cells

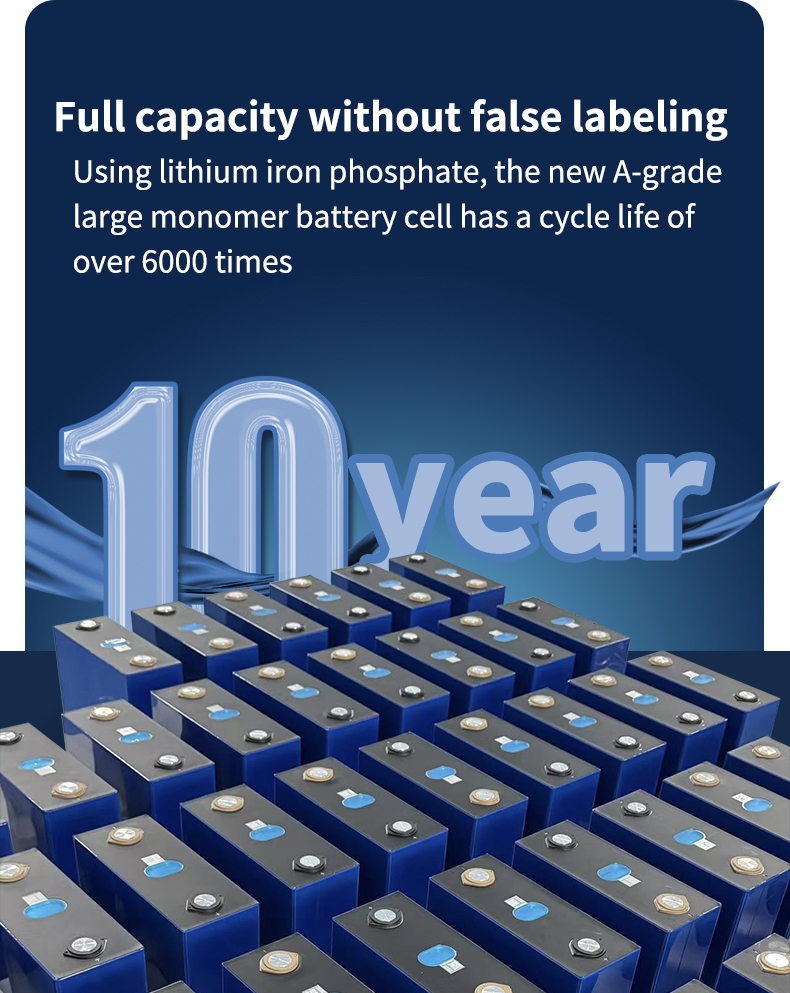

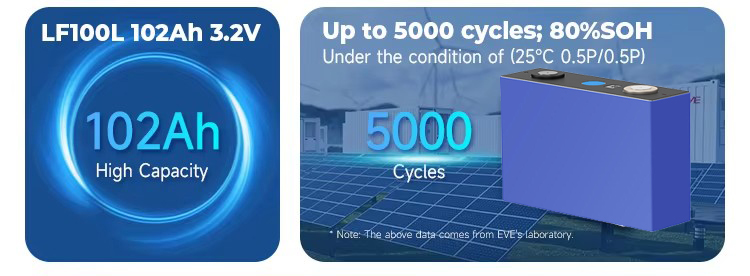

Quality begins at the core. Our system utilizes EVE Grade A prismatic LFP cells, known globally for their high energy density and thermal stability. Unlike B-grade or recycled alternatives, these cells come with original QR codes and full factory consistency reports, guaranteeing that your home energy storage system operates at peak performance for years.

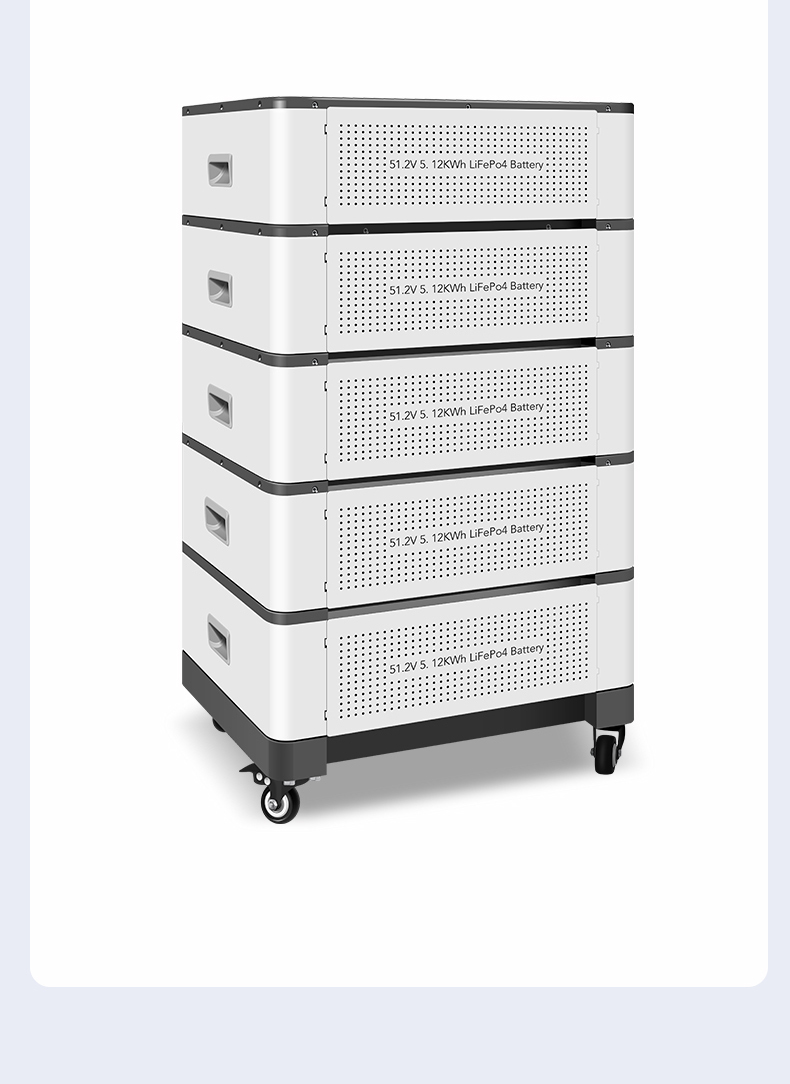

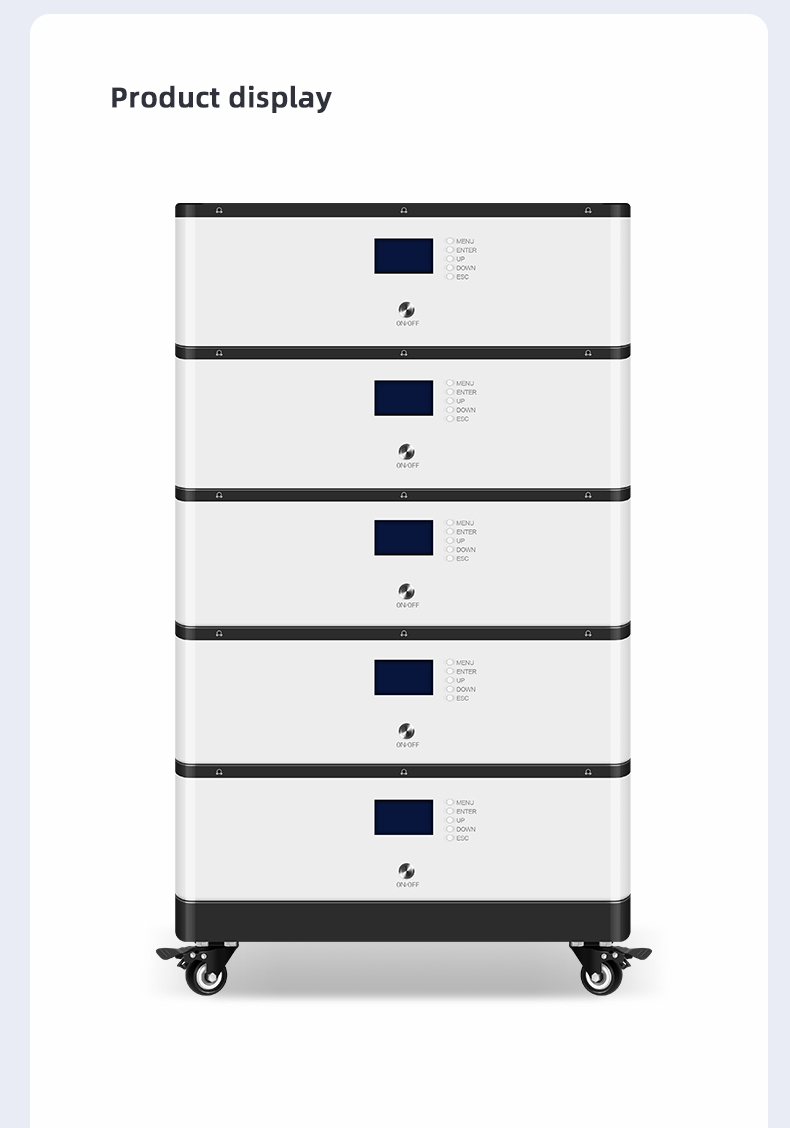

Scalable Power for Modern Homes

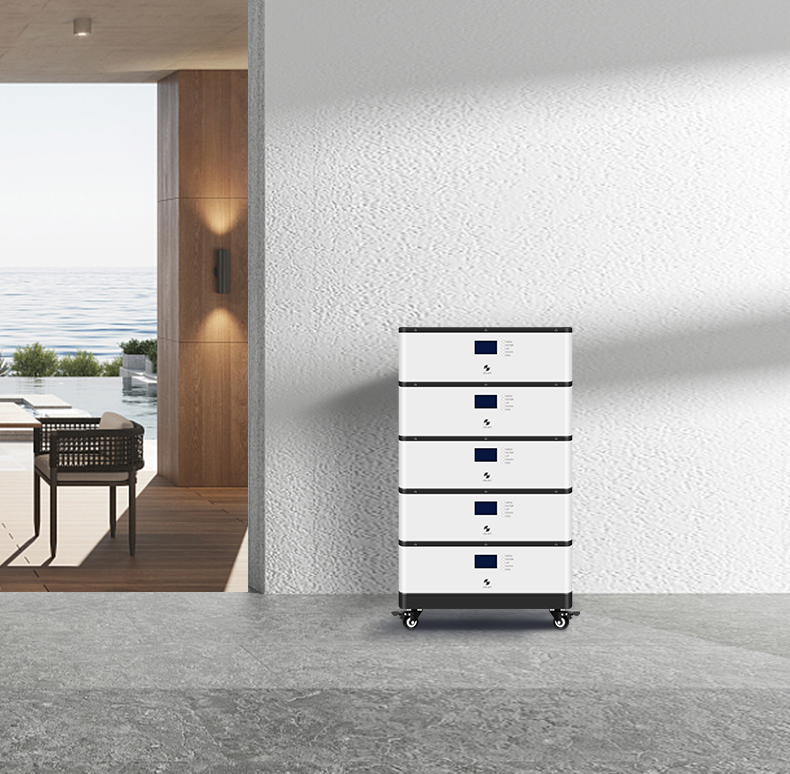

Our stackable architecture is designed for flexibility. Whether you are starting with a single 5.12kWh module for emergency backup or building a high-capacity system for complete energy independence, the “plug-and-stack” design makes installation quick and aesthetically pleasing for residential environments.
Advanced Safety & Intelligent Monitoring

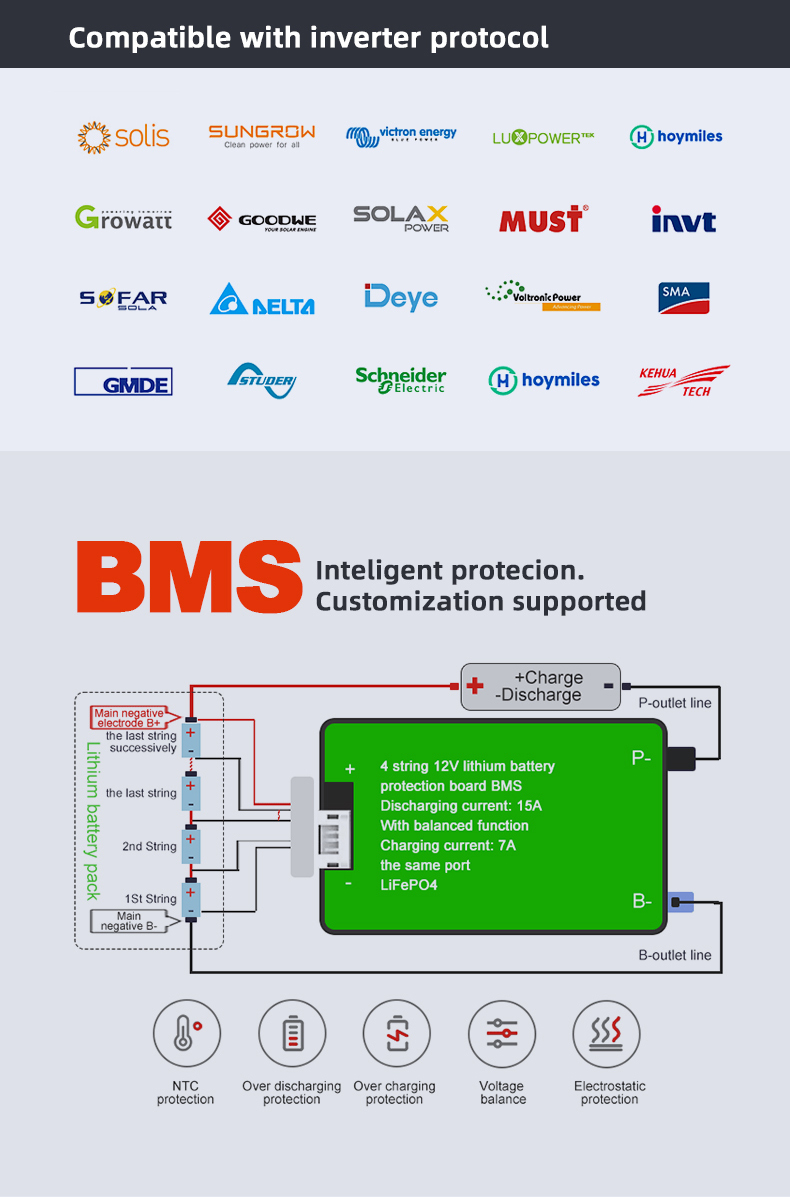

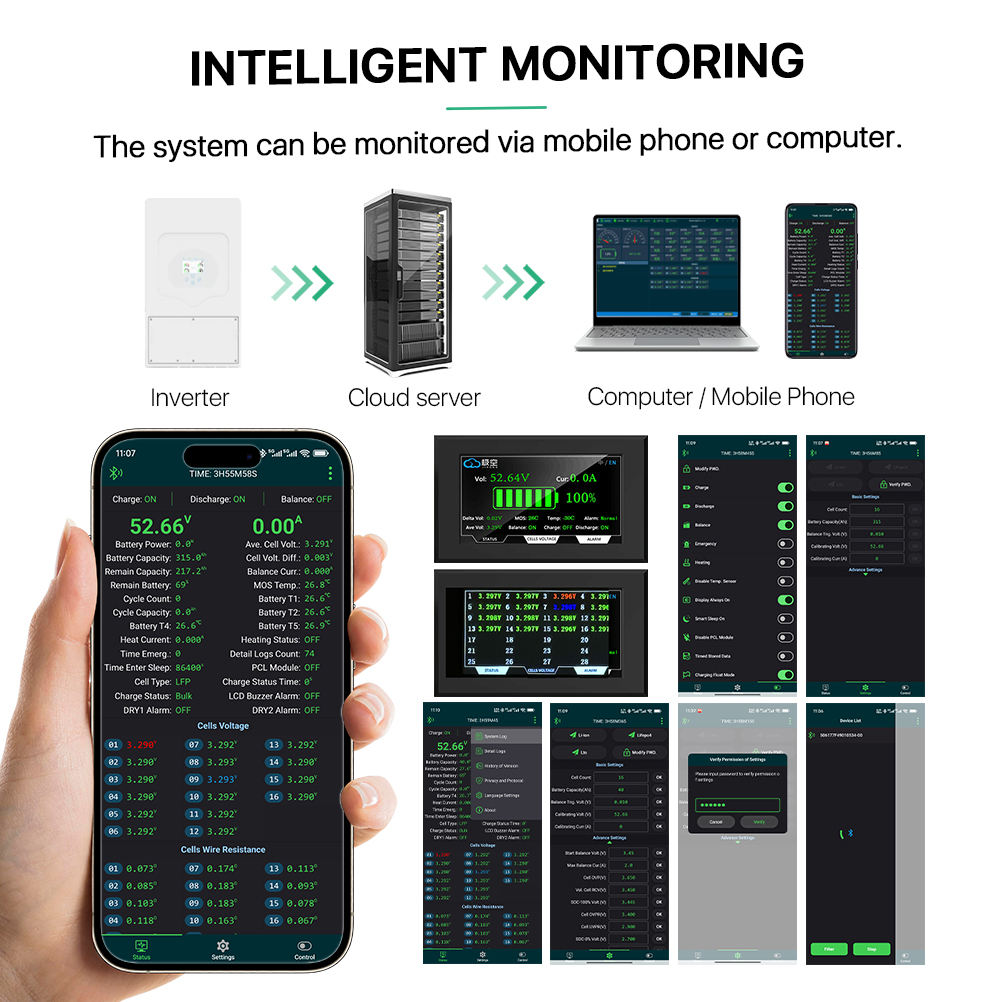

Safety is our top priority. The integrated Smart BMS continuously monitors voltage, current, and temperature, protecting against over-charging, over-discharging, and short circuits. The system features an LCD display and LED indicators for real-time SOC (State of Charge) monitoring, and is fully ready for remote app-based tracking.
Seamless Global Compatibility

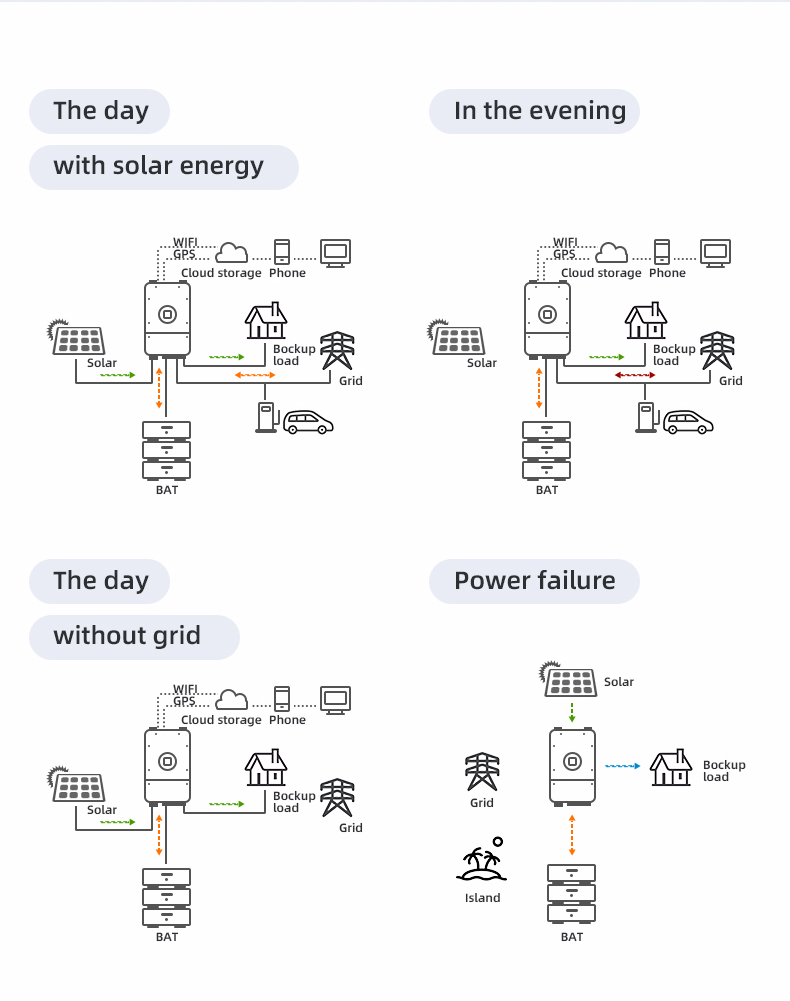

Designed for the global market, this 51.2V (standard 48V) platform is compatible with leading inverter brands including Victron, Growatt, Deye, and GoodWe. It is the ideal “future-ready” solution for home solar upgrades, peak-shaving, or off-grid living.

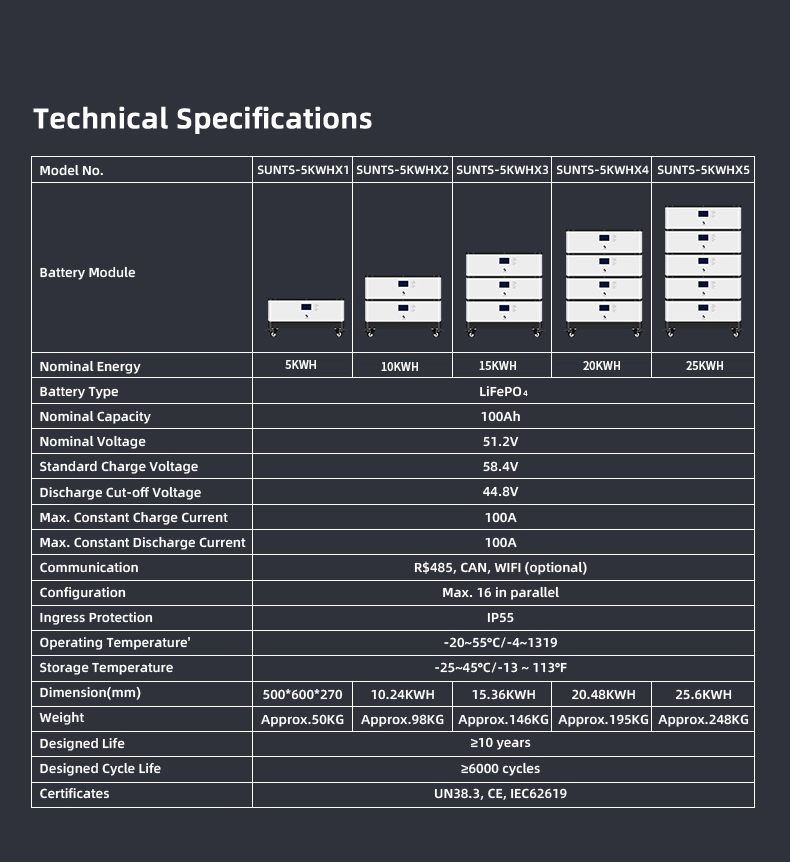

Technical Specifications
| Item | Specification |
|---|---|
| Model | 51.2V 100Ah Stackable ESS |
| Nominal Energy | 5.12 kWh per module |
| Cell Type | LiFePO4 (Grade A EVE) |
| Nominal Voltage | 51.2 V |
| Cycle Life | ≥ 6,000 Cycles @ 80% DOD |
| Standard Charge/Discharge | 50A / 100A |
| Communication | RS485, CAN, RS232 |
| Operating Temperature | Charge: 0~60°C / Discharge: -20~60°C |
| Protection Rating | IP20 / IP55 (Standard/Custom) |
| Warranty | 5 – 10 Years |
Why Choose Us?
-
- Factory Direct Quality: Sourced from leading manufacturing hubs in China with strict QC and international certifications (CE, UN38.3, MSDS).
- Professional Technical Support: We provide SKD/CKD solutions and full engineering support for large-scale residential projects.
[Contact Us for a Bulk Quote Today!]
During the charging process, some lithium ions in lithium iron phosphate are removed and transferred to the negative electrode through the electrolyte, which is embedded in the negative electrode carbon material; At the same time, electrons are released from the positive electrode and reach the negative electrode from the external circuit, maintaining the balance of chemical reactions. During the discharge process, lithium ions detach from the negative electrode and reach the positive electrode through the electrolyte. At the same time, the negative electrode releases electrons, which reach the positive electrode from the external circuit and provide energy to the outside world.
